P320HVN02.0 डिस्प्ले के लिए LVDS केबल असेंबली
Custom LVDS Cable Assembly For P320HVN02.0 Display with
JAE & DF13
LVDS Cable Assembly For P320HVN02.0 Display:

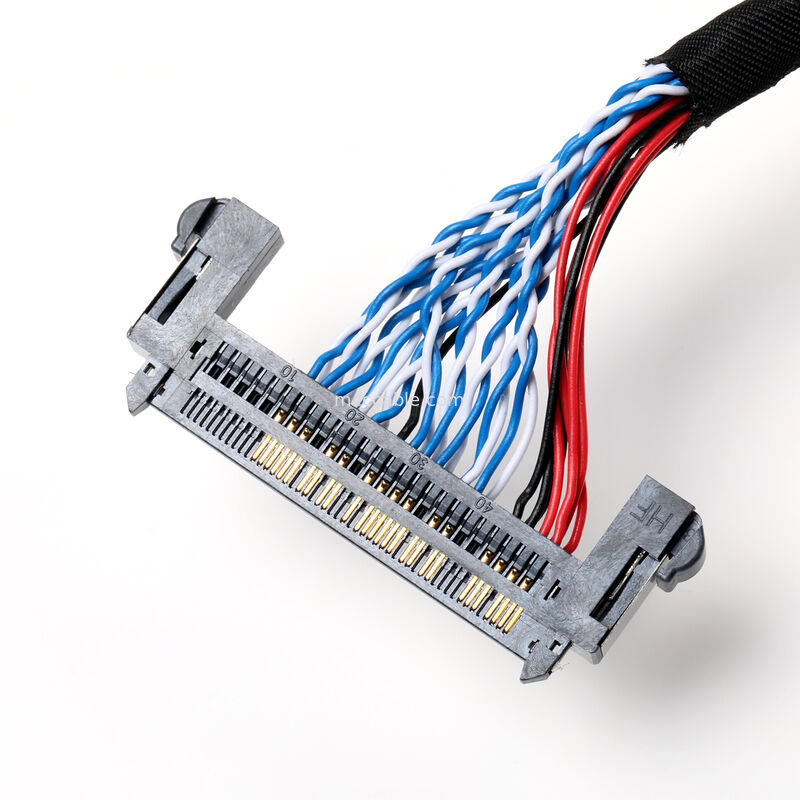

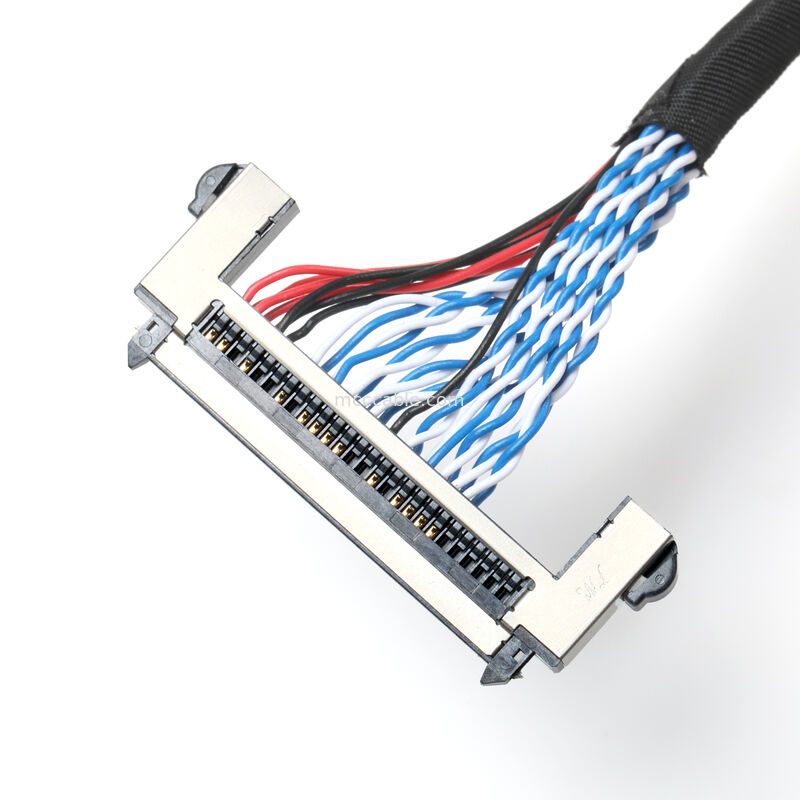

This custom LVDS cable assembly is specifically designed for the P320HVN02.0 TFT LCD
panel, featuring a JAE F1-RE51HL connector on the panel side and a DF13-30DS-1.25
connector on the controller side.
The cable uses AWG 28 shielded wires, including 10 twisted differential pairs and 10 straight
signal wires, ensuring excellent signal integrity for high-speed LVDS transmission.
All assemblies are manufactured according to IPC/WHMA-A-620 Class 2 standards and are
100% electrically tested before shipment.
OEM and ODM customization is fully supported.
Key Features Of LVDS Cable Assembly For P320HVN02.0 Display:
Designed for P320HVN02.0 LVDS interface
JAE F1-RE51HL panel connector
DF13-30DS-1.25 controller connector
10 twisted pairs + 10 straight wires (30 wires total)
Shielded cable with ground terminal
Stable differential signal transmission
High EMI resistance
AWG 28 wire gauge
Custom pin assignment supported
RoHS compliant
Typical Applications Of LVDS Cable Assembly For P320HVN02.0 Display:
TFT LCD display modules
Industrial HMI systems
Medical display equipment
Embedded control systems
Industrial PCs & monitors
Technical Specifications Of LVDS Cable Assembly For P320HVN02.0 Display:
| Item | Specification |
|---|---|
| Product Type | LVDS Cable Assembly |
| LCD Panel Model | P320HVN02.0 |
| Panel-side Connector | JAE F1-RE51HL |
| Controller-side Connector | DF13-30DS-1.25 |
| Cable Type | Shielded LVDS cable |
| Wire Gauge | AWG 28 |
| Total Wires | 30 |
| Differential Pairs | 10 twisted pairs |
| Straight Wires | 10 |
| Signal Type | LVDS |
| Cable Length | 980 mm |

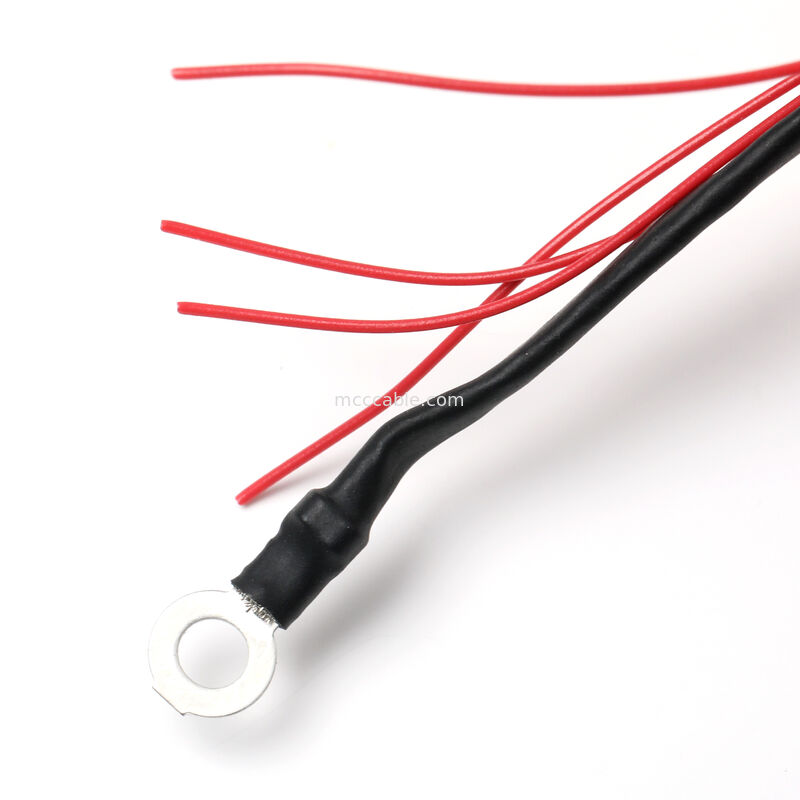

| Grounding | Shield + GND terminal |
| Power Lines | 4 × LCD VCC |
| Manufacturing Standard | IPC/WHMA-A-620 Class 2 |
| Compliance | RoHS |
| Customization | Supported |
Customization Capability Of LVDS Cable Assembly For P320HVN02.0 Display:
We offer full LVDS cable customization, including:
Cable length adjustment
Alternative LCD panel models
Connector replacement
Pin mapping & signal definition
Shielding structure optimization
Engineering drawing review is supported before mass production.
Quality Control Of LVDS Cable Assembly For P320HVN02.0 Display:
100% continuity & short test
Differential pair impedance inspection
Visual & crimp inspection
Shield grounding verification
Batch traceability control
Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.
Q1. Are you a manufacturer or a trading company?
A: We are a professional manufacturer with over 16 years of experience in cable design
and manufacturing.
Q2. What certifications do you have?
A: Our factory is certified with ISO9001, ISO14001, TS16949, ISO13485, and UL, ensuring
stable quality and compliance with international standards.
Q3. What are your core strengths?
A: We specialize in application-based design, providing customized cable and wiring
solutions tailored to specific customer requirements.
Q4. Do you support OEM and ODM services?
A: Yes, both OEM and ODM services are available.
OEM orders: Minimum order quantity (MOQ) is 100 pcs
ODM orders: MOQ is 1000 pcs
Mold fees will be charged based on the actual design and development requirements.
Q5. What is your production lead time?
A:Small orders or items in stock: Preparation and dispatch within 3 days. Shipping time
depends on the selected method, ranging from 7 days to 1 month.
Large orders: Production lead time is 5–21 working days depending on quantity, followed
by 1–3 days for testing and 1 day for packaging. Total lead time is typically 7–25 days,
excluding shipping.
Q6. What additional benefits do long-term partners receive?
A: Long-term customers enjoy:
Access to new product releases, allowing early market testing and regional resale
opportunities
Additional discounts and more competitive pricing, even for smaller order quantities
Marketing support, including promotional images and logo customization
Q7. What is the warranty policy, and how are quality issues handled?
A: All our cable products come with a 12–36 month warranty.
For large-volume orders, we provide 0.3%–0.5% extra units as backup. For example,
an order of 1000 pcs may include up to 1003 pcs.
If you receive more than 5 defective units and the defect rate is below 0.1%, please
contact our sales team with photos. We will resolve the issue through replacement or
refund.
Q8. Do you offer free samples?
A: Yes, sample orders are supported. Some samples can be provided free of charge,
excluding shipping costs.
How to Contact Us
Send your inquiry now and click “Send” to get:
Free samples
Competitive pricing
Professional technical support
If you cannot find the exact product on our website, feel free to contact us. Even if it
is not currently listed, we can help source or customize the right solution with reliable
quality and pricing.
