उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
Customization
प्रमाणन:
UL ，ISO13485 , ISO9001.2005 , ISO14001
मॉडल संख्या:
3-पिन फीमेल से मोलेक्स 51163-0300

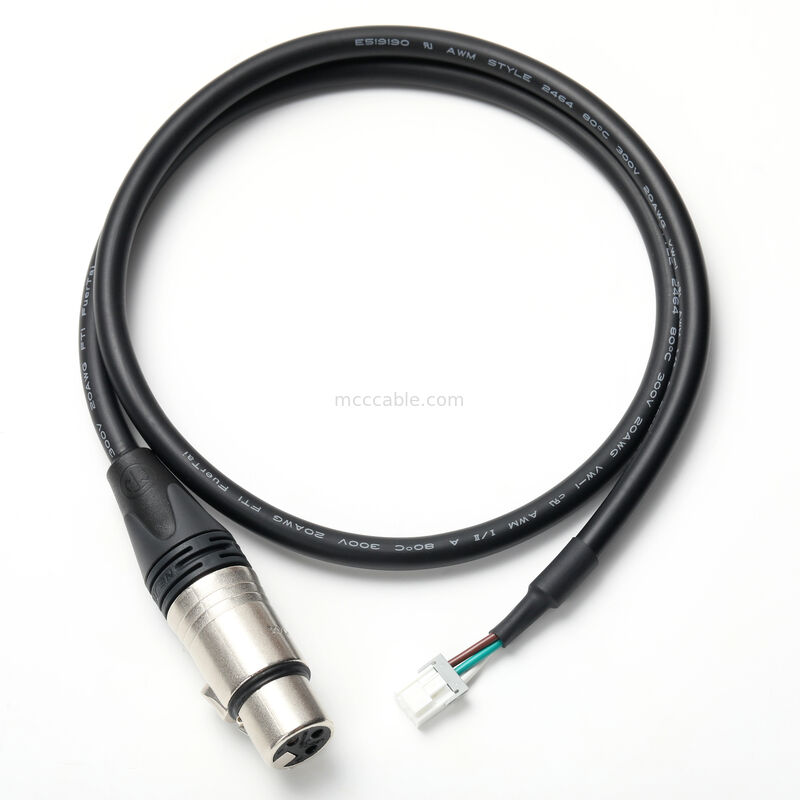

Custom XLR 3-Pin Female to Molex 51163-0300 Cable Assembly
| Neutrik NC3FXX | 20AWG UL2464
Custom XLR 3-Pin Female to Molex 51163-0300 Cable Assembly:
This custom-built XLR 3-Pin Female to Molex Mini-Lock 3-Pin Cable Assembly is designed for
professional audio, industrial control, and signal transmission applications.
Using a genuine Neutrik NC3FXX XLR connector and Molex 51163-0300 housing with TPA
retainer, this cable provides high mechanical durability, secure locking, and low-noise signal
performance.
The cable is constructed with UL2464 20AWG stranded conductors, ensuring excellent
conductivity, flexibility, and safety compliance. Each assembly undergoes 100% electrical
testing for continuity, insulation resistance, and short-circuit prevention, guaranteeing flawless
performance in demanding environments.
Key Features

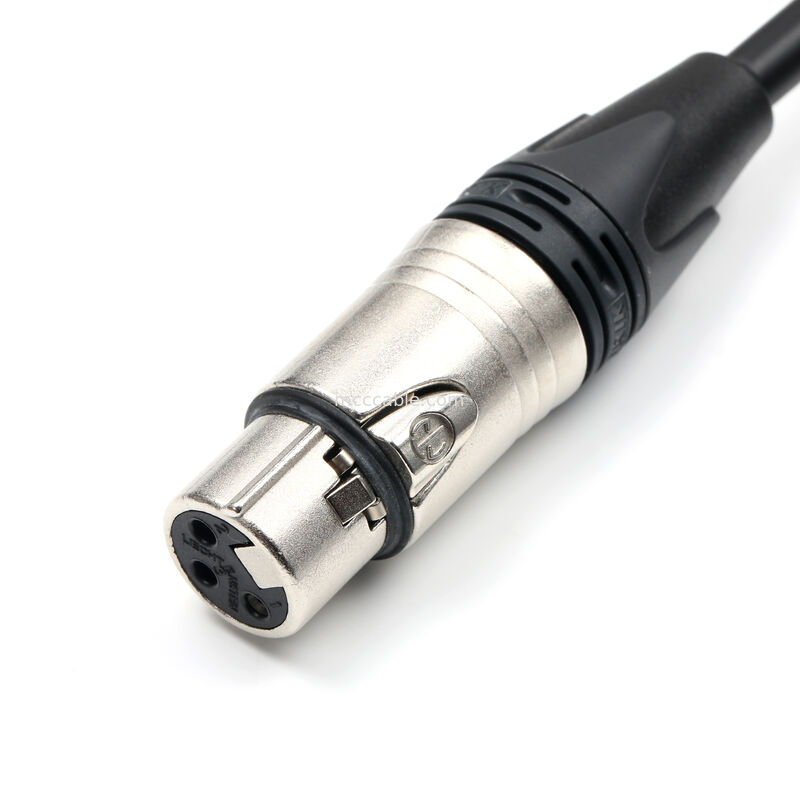

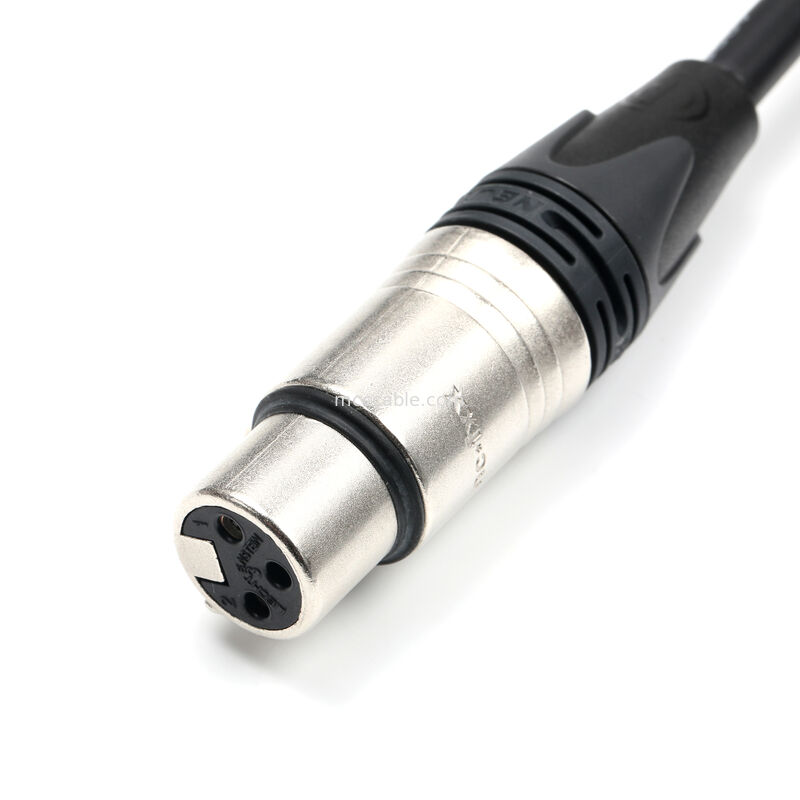

Neutrik NC3FXX XLR 3-Pin Female — industry-standard, durable, secure locking

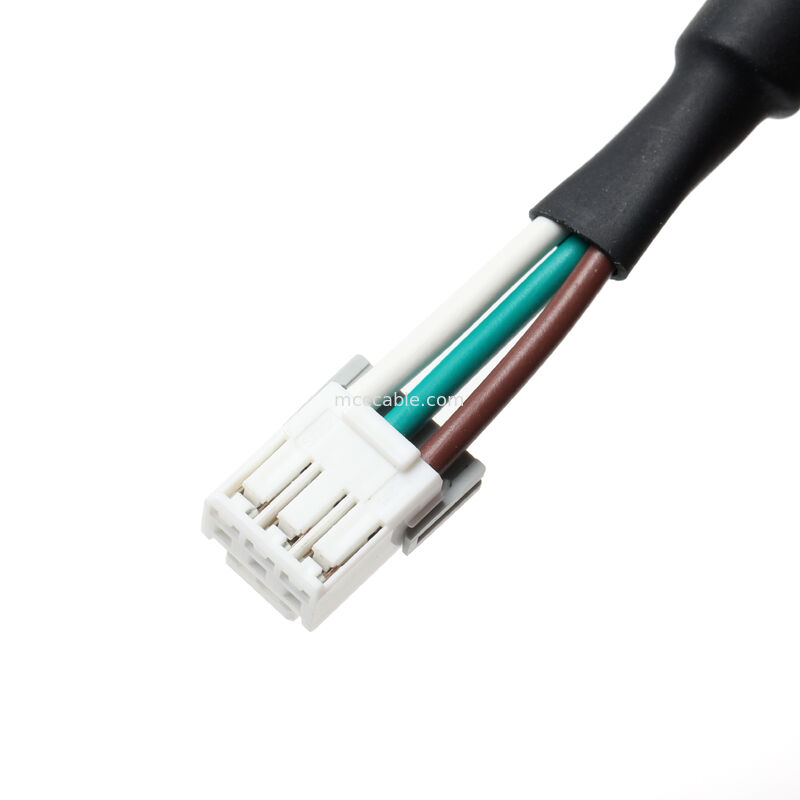

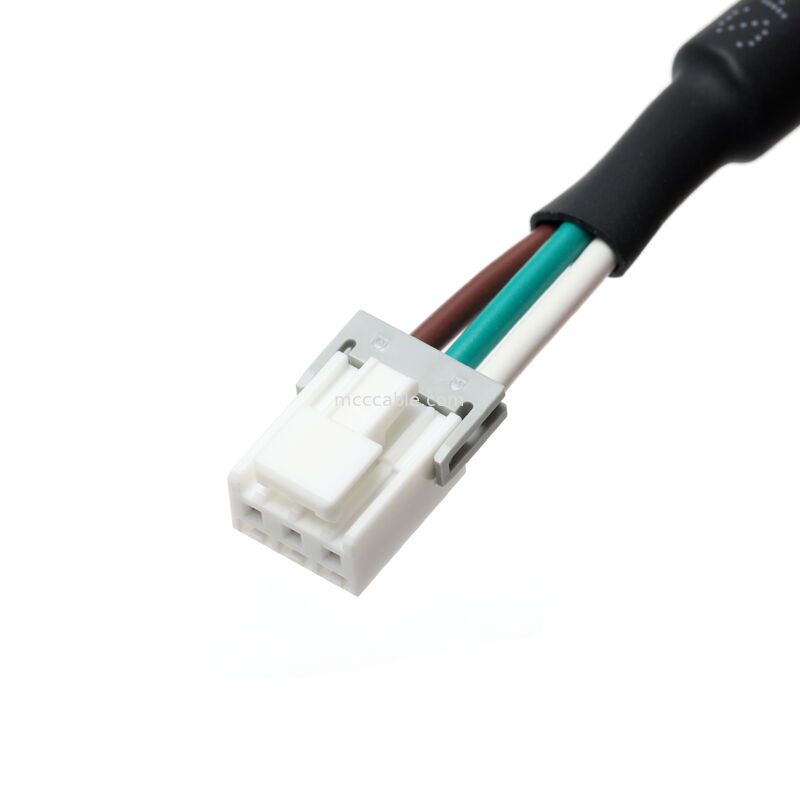

Molex 51163-0300 Mini-Lock 3-Pin Housing — compact & vibration resistant
With Molex TPA (0511640305) — ensures terminal retention & anti-back-out safety
UL2464 20AWG cable, OD 6.6mm — stable signal transmission
Customized length available (300mm ~ 10m)
100% continuity, open/short, intermit test performed
RoHS 2.0 compliant
Technical Specifications Table
| Item | Specification | Details / Source |
|---|---|---|
| Product Name | XLR Female to Molex 3-Pin Cable Assembly | Customizable |
| XLR Connector (P1) | Neutrik NC3FXX | 3-Pin XLR Female |
| Molex Connector (P2) | Molex 51163-0300 | Mini-Lock 2.50mm Pitch, 3-pin |
| TPA Retainer | Molex 0511640305 | Anti-back-out design |
| Cable Type | UL2464 20AWG × 3C | OD 6.6mm, PVC black |
| Length | 700mm ±10mm | Custom lengths available |
| Pin Assignment | P1: 1-2-3 → P2: 1-2-3 | Color: White / Green / Brown |
| Electrical Test | 100% Open/Short/Intermittence Test | Per drawing requirements |
| Conductor Resistance | ≤ 2Ω Max | Verified |
| Insulation Resistance | ≥ 10MΩ @ 300V DC | 10ms minimum |
| Temperature Rating | 80°C | UL2464 spec |
| Voltage Rating | 300V | UL2464 spec |
| Compliance | RoHS 2.0 | Environment-safe |
Application Areas
This cable assembly is widely used in:
Professional Audio Equipment
Mixers, amplifiers, microphones
Stage & lighting control systems
AV integration systems
Broadcasting & Media Systems
Camera power/control adapters
Field recording equipment
Signal routing panels
Industrial & Automation Systems
Sensor and control signal lines
Testing & measuring devices
OEM equipment wiring harnesses
Customization Options
We provide full customization to meet OEM/ODM needs:
Cable Options
Length: 100mm – 10m
Wire gauge: 20AWG / 22AWG / 24AWG
Jacket: PVC / TPU / TPE
Color: Black / Gray / Custom
Connector Options
XLR Male / Female / 4-Pin / 5-Pin
Molex Mini-Lock / Micro-Fit / Ultra-Fit
Custom terminal crimping
Additional Services
Labeling & serial number printing
Over-molding
Braiding & shielding
Waterproofing (IP67 housing available)
Quality Assurance
Every cable is manufactured under a strict quality management system:
100% electrical testing
Pull-force & retention testing
Crimp-height inspection
Visual QC for molding & termination
ROHS 2.0 compliance
Q1. Is it a factory?
A: Yes, we are a factory with more than 16 years of design and manufacturing experience.
Q2. Is there any certification?
A: Yes, we have ISO9001, ISO14001, TS16949, ISO13485, and UL certifications.
Q3. What is your specialty?
A: We can design products according to the application requirements.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM and ODM orders. For OEM orders, the MOQ is 100 pcs. For ODM
orders, the MOQ is 1000 pcs. A mold fee will be charged depending on the design.
Q5. How long does it take to complete an order?
A:For small orders and products in stock, preparation and delivery take less than 3 days.
Shipping time depends on the chosen method—fastest 7 days, longest 1 month.For large
orders, material preparation takes 5–21 working days depending on quantity, testing 1–3
working days, and packing 1 day. The fastest lead time is 7 days, and the longest is 25 days,
excluding shipping.
Q6. What additional services can long-term clients get?
A:New products will be offered together with orders, allowing you to test their market potential
and sell them in your district.Additional fee discounts and lower prices for smaller-quantity
purchases.Support with promotional images, including adding your logo.
Q7. How long is the warranty, and how do you protect customers in case of defects?
A: All cables come with a 12–36 month warranty. For large orders, we provide 0.3%–0.5%
extra backup units. For example, ordering 1000 pcs will include 1003 pcs.If you receive more
than 5 faulty pcs and the defect rate is below 0.1%, please contact our sales team with photos.
We will replace the goods in your next order or issue a refund.
Q8. Do you accept free sample orders?
A: Yes, sample orders are supported. Some samples can be provided free of charge (shipping
cost not included).
